Metal cavity duplexer combines two metal cavity filters—typically a transmit filter and a receive filter—into a single unit with a common antenna port. It allows simultaneous transmission and reception over a single antenna while providing high isolation between the TX and RX paths. With its low insertion loss and high power handling, it is widely used in base stations, repeaters, and other high-power wireless communication systems.

Product Classification

Metal Cavity Filter Metal Cavity Duplexer

Metal Cavity Duplexer

Product Features:

High Q value, small insertion loss, large power capacity

High suppression system

Solid structure, high reliability

Far parasitic passband, high working frequency band

Excellent anti-interference, good rectangular coefficient, small temperature coefficient

Flexible design, can be miniaturized design

Frequency range: 100MHz~60GMHz

Power range: 5W~200W

Inquire Now

application area

Electronic countermeasures, aerospace

Radio and television, electronic test equipment

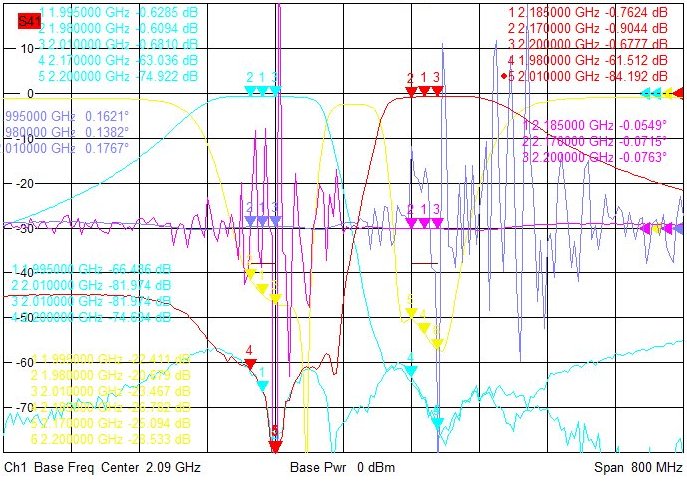

Classical curve

C.D-Series Typical Curve

Model	Center Frequency (MHz)	Band Width (MHz)	Insertion Loss(dB)	Ripple in BW	VSWR in BW	Attenuation	Interface Method	Size（WLH)	Form
CD1862-2140C12N115-60HA	1862-2140	115	0.80	0.80	1.50	30dBc@1770&1955	SMA	1567640	Band Pass
CD1862-2140C12N115-60HA	1862-2140	60	0.80	0.80	1.50	30dBc@2075&2205	SMA	1567640	Band Pass
CD343-394C5N16-40HA	343-394	343	0.50	/	1.50	30dB@374.5~415	SMA	1305836	Band Pass
CD343-394C5N16-40HA	343-394	394	0.50	/	1.50	30dB@335~351	SMA	1305836	Band Pass
CD4850-5787C4N100-125HA	4850-5787	100	0.80	0.80	1.50	60dB@5725~5850	SMA	50.54017	Band Pass
CD4850-5787C4N100-125HA	4850-5787	125	0.80	0.80	1.50	60dB@4800~4900	SMA	50.54017	Band Pass
CD1350-1445C7N10HA	1350-1445	10	0.70	0.50	1.50	50dB@DC~1000 65dB@1440~1450 50dB@1615~2800	SMA	1086938	Band Pass
CD1350-1445C7N10HA	1350-1445	10	0.70	0.50	1.50	50dB@DC~1000 65dB@1345~1355 50dB@1615~2600	SMA	1086938	Band Pass
