High Q value, small insertion loss, large power capacity
High suppression system
Solid structure, high reliability
Far parasitic passband, high working frequency band
Excellent anti-interference, good rectangular coefficient, small temperature coefficient
Flexible design, can be miniaturized design
Frequency range: 100MHz~60GMHz
Power range: 5W~200W
Radar T/R components
Electronic countermeasures, aerospace
Radio and television, electronic test equipment

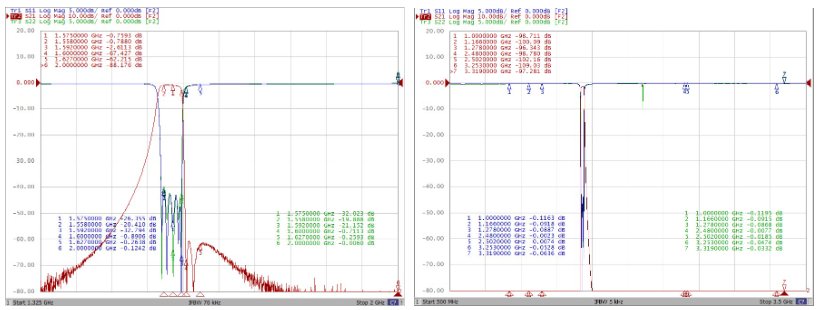

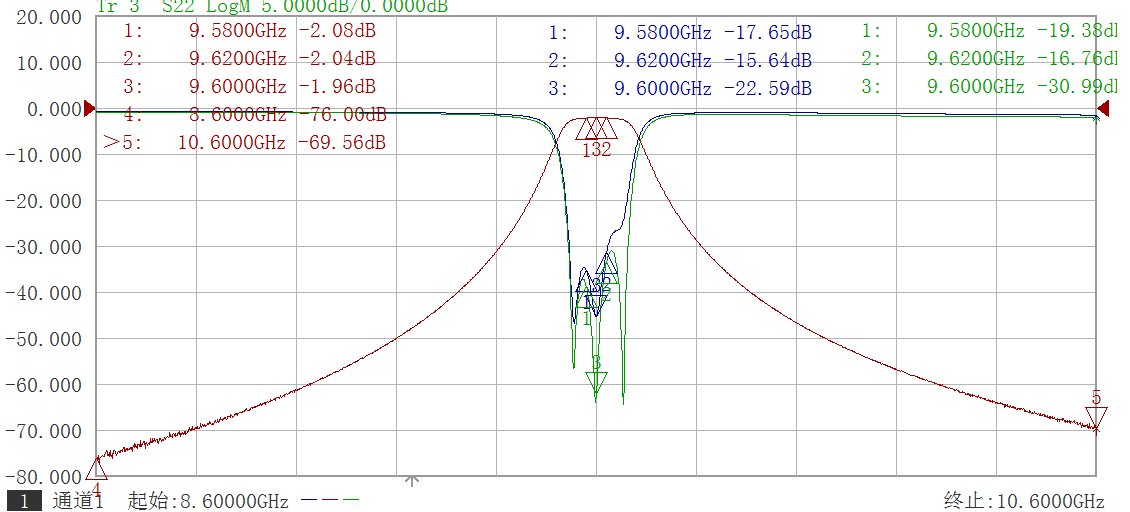

C.B-Series Typical Curve
| Rich Power Product Name | Center Frequency (MHZ) |
Band Width (MHZ) |
I / L | R / P | VSWR | Att | Interface Method | W*L*H | Form |
|---|---|---|---|---|---|---|---|---|---|
| CB868.7-02C6HA | 868.7 | 02 | 1.0 | 0.5 | 75dB@850MHz 75dB@886MHz | SMA-k | 142*80*40 | Band Pass | |
| CB10000-2000C8HA | 1000 | 2000 | 3.00 | 1.0 | 1.5 | 40dB@8500~ 60dB@12000~ | SMA | 40*11*8 | Band Pass |
| CB9600-1000C5HA | 9600 | 1000 | 1.5 | 1.0 | 1.5 | 70dBc@4800 70dBc@14400 | SMA | 30*12.5*7 | Band Pass |
| CB7400-500C6HA | 7400 | 500 | 2.5 | 1.0 | 1.5 | 40dB@DC~6750 40dB@7950~20000 | SMA | 40*12*11.5 | Band Pass |
| CB5225-40C5HA | 5225 | 40 | 4 | 1.0 | 1.5 | 40dBc@5155 80dBc@4925&4965 | SMA | 30*14*7 | Band Pass |
| CB3950-500C10NHB | 3950 | 500 | 0.5 | 0.5 | 1.3 | 45dB@3000~3620 45dB@4275~4770 | SMA | 120*69.9*98.4 | Band Pass |
| CB1800-100C7HA | 1800 | 100 | 0.7 | 0.5 | 1.5 | 90dB@1650~2050 | SMA | 104*45*19 | Band Pass |
| CB1575-34C6HC | 1575 | 34 | 1.0（+25℃） 1.2 （-40℃~+85℃） | 0.6（+25℃） 0.8 （-40℃~+85℃） | 1.5 | 60dB@1610~1627 60dB@1630~2000 | SMA | 82*46*24 | Band Pass |
| CB1350-520C8HA | 1350 | 520 | 0.95 | 0.75 | 1.5 | 30dB@1025 40dB@1675 | SMA | 112*56*20 | Band Pass |
